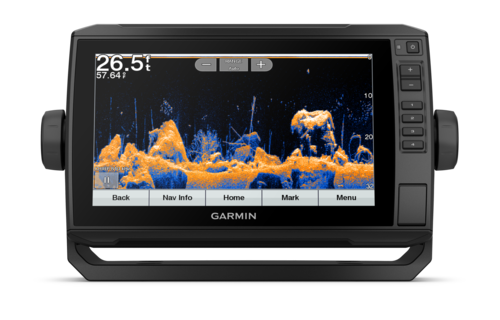

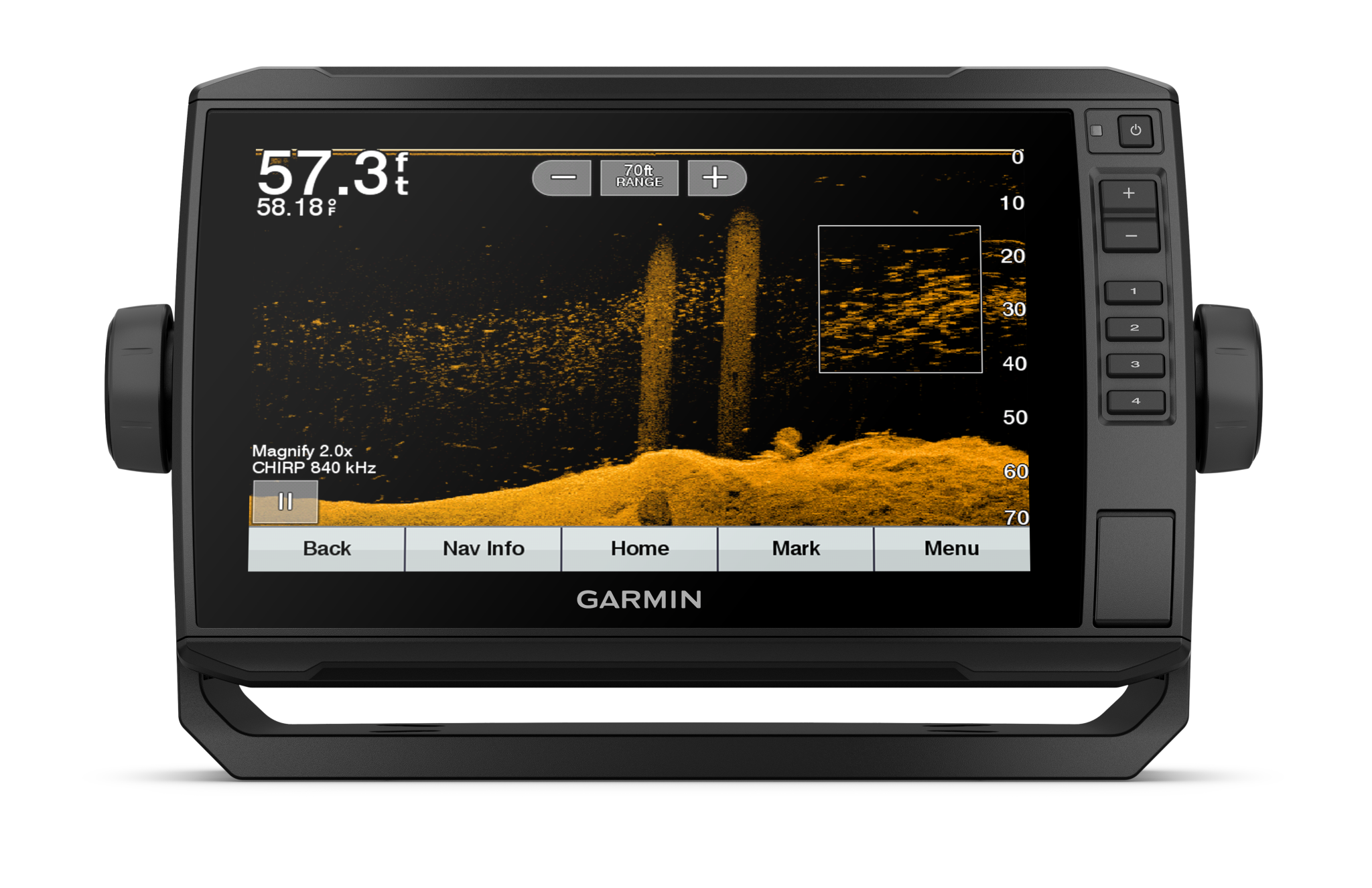

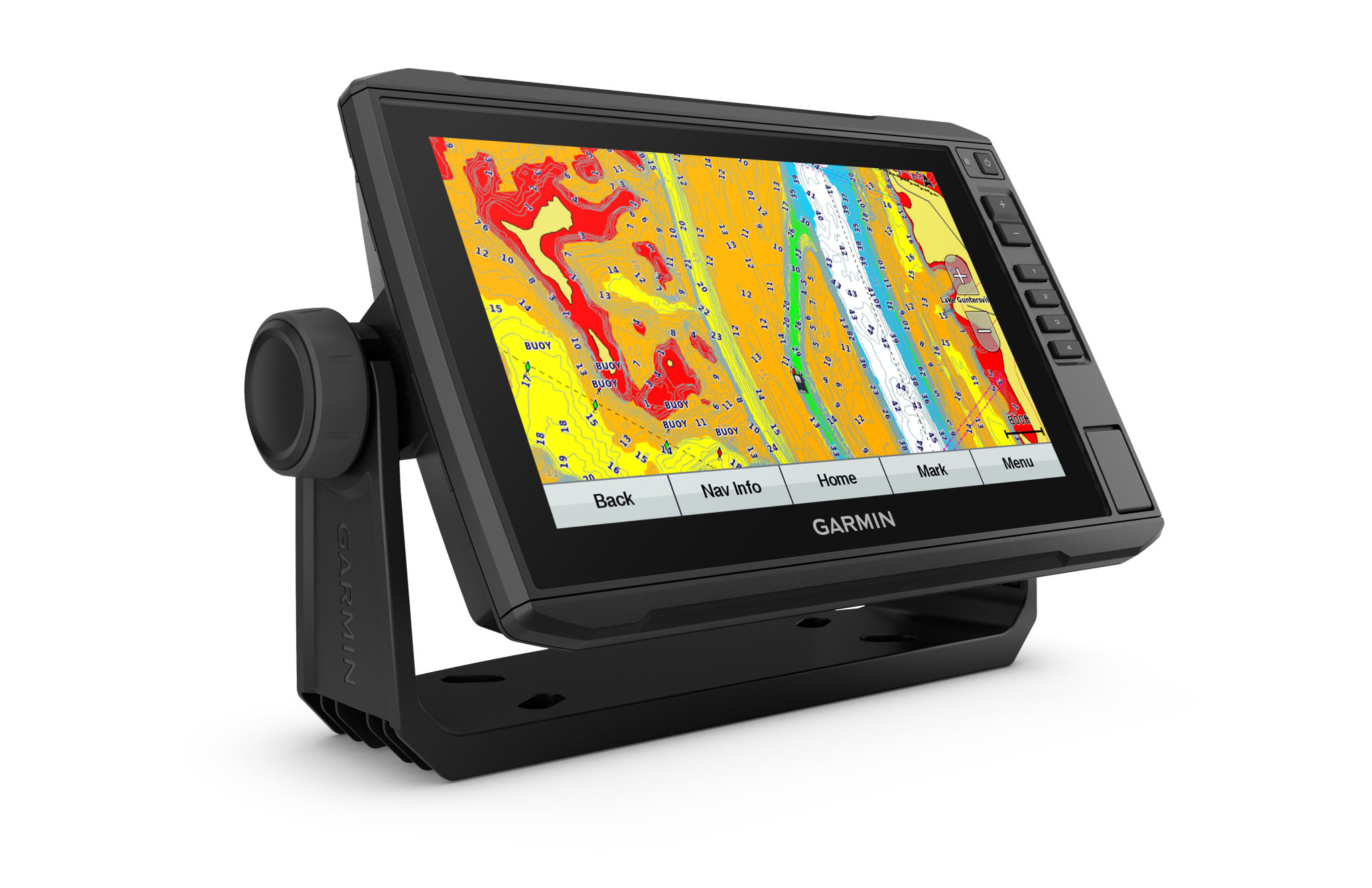

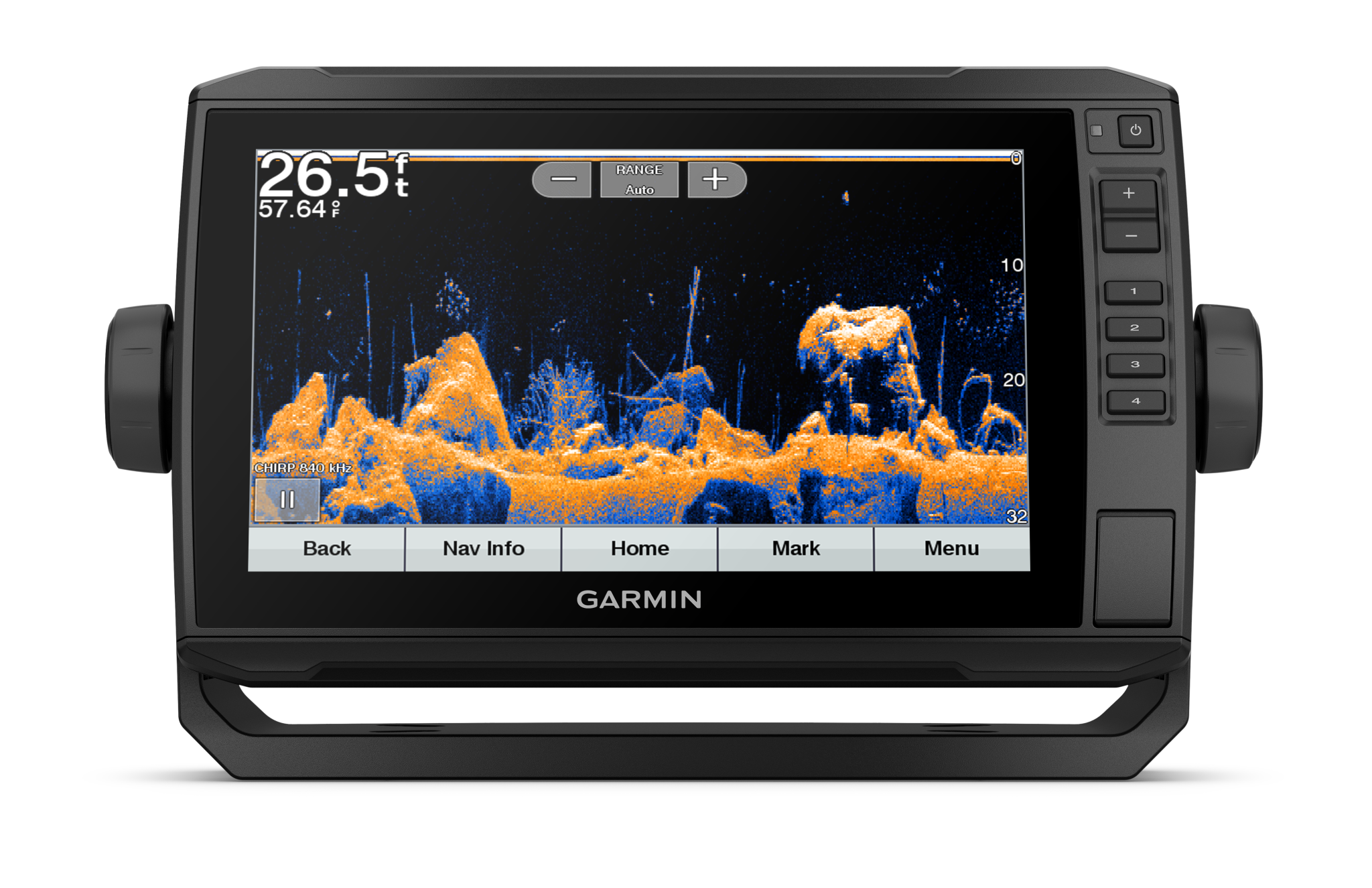

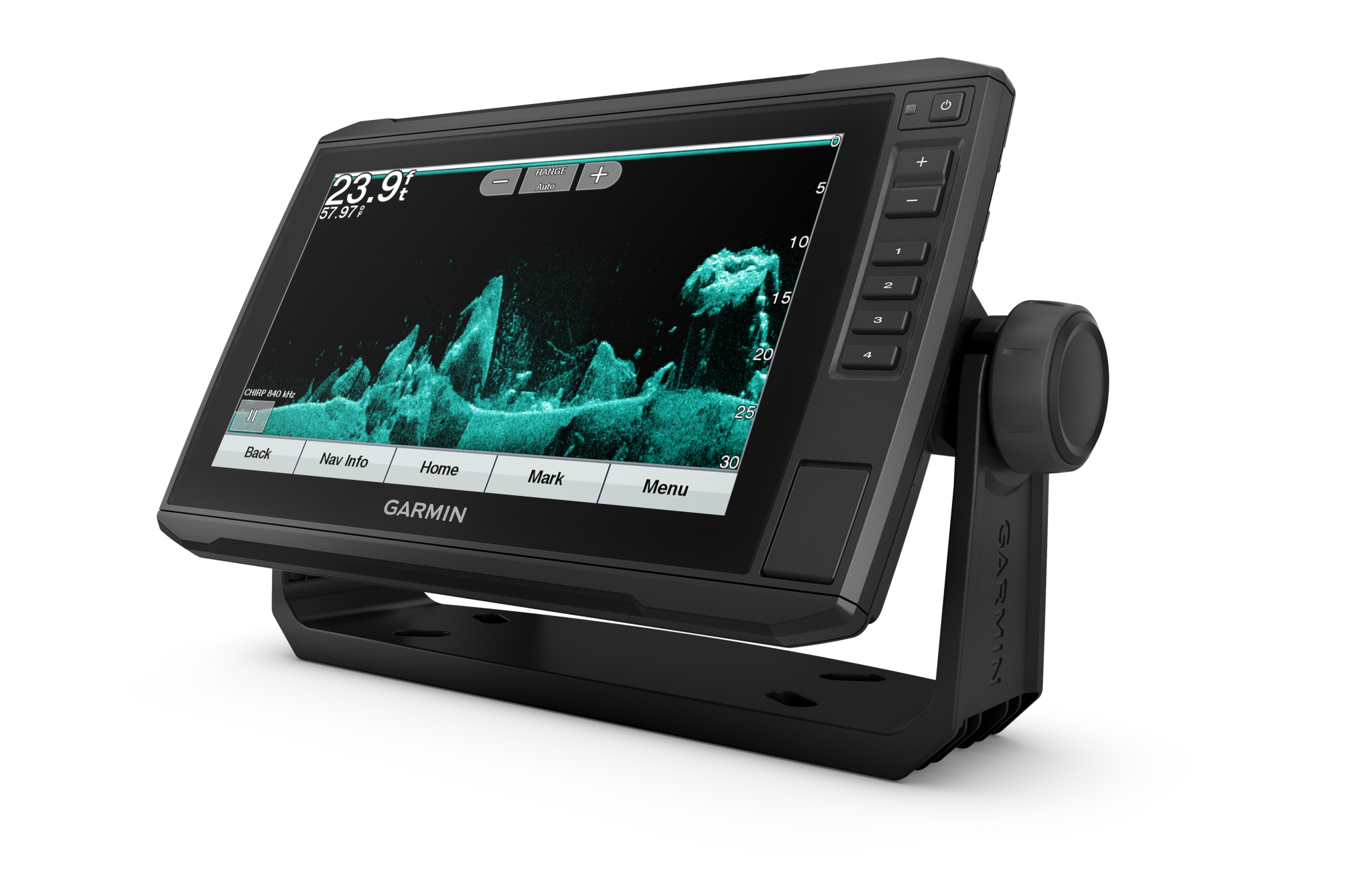

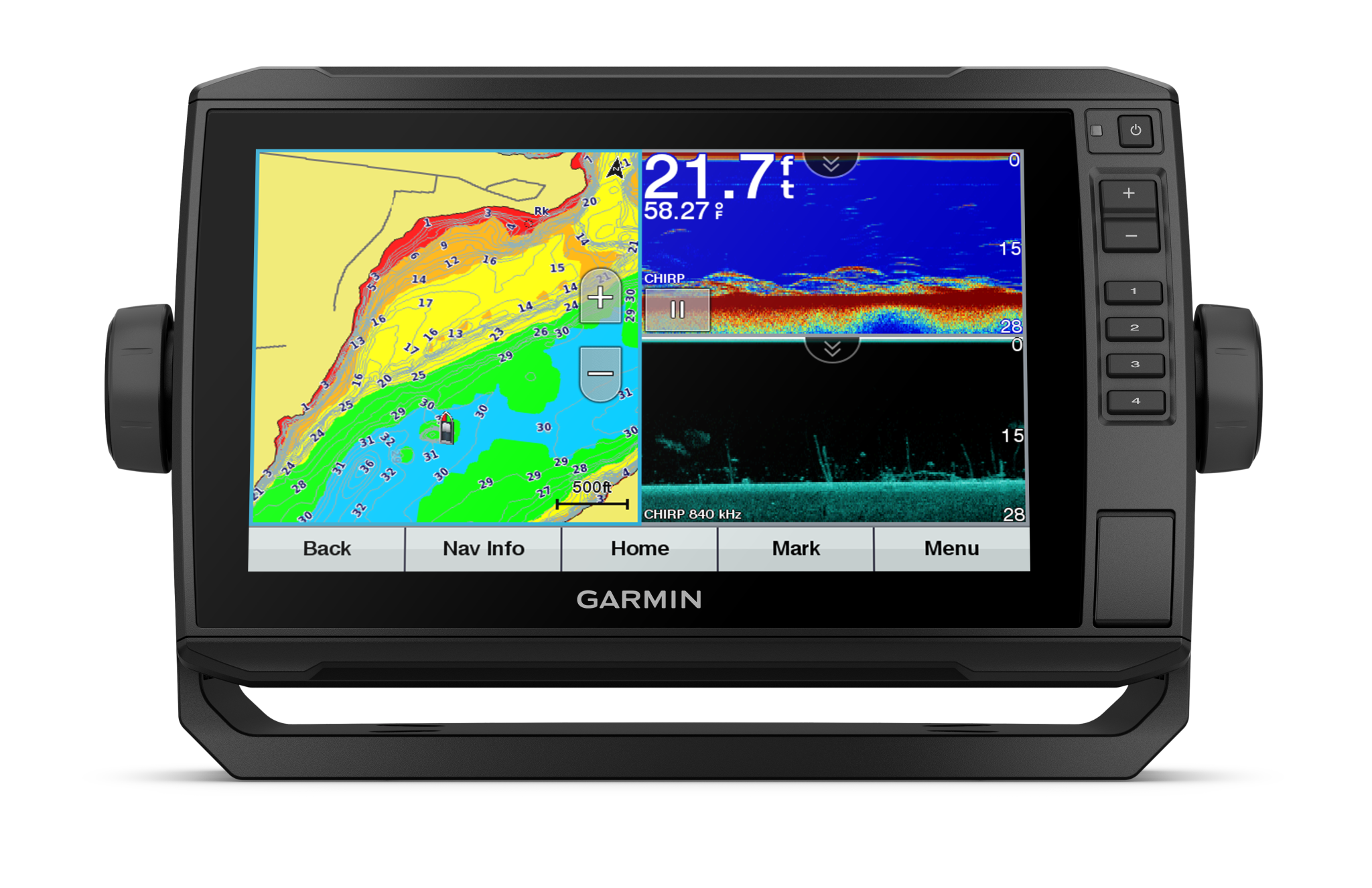

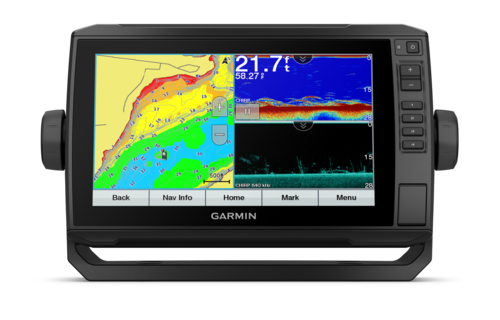

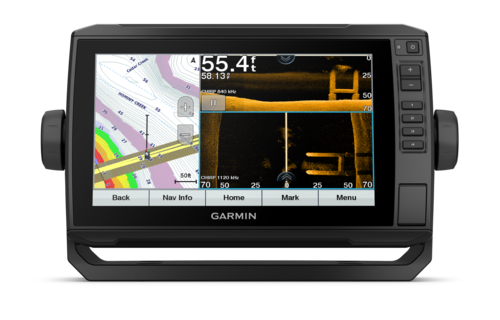

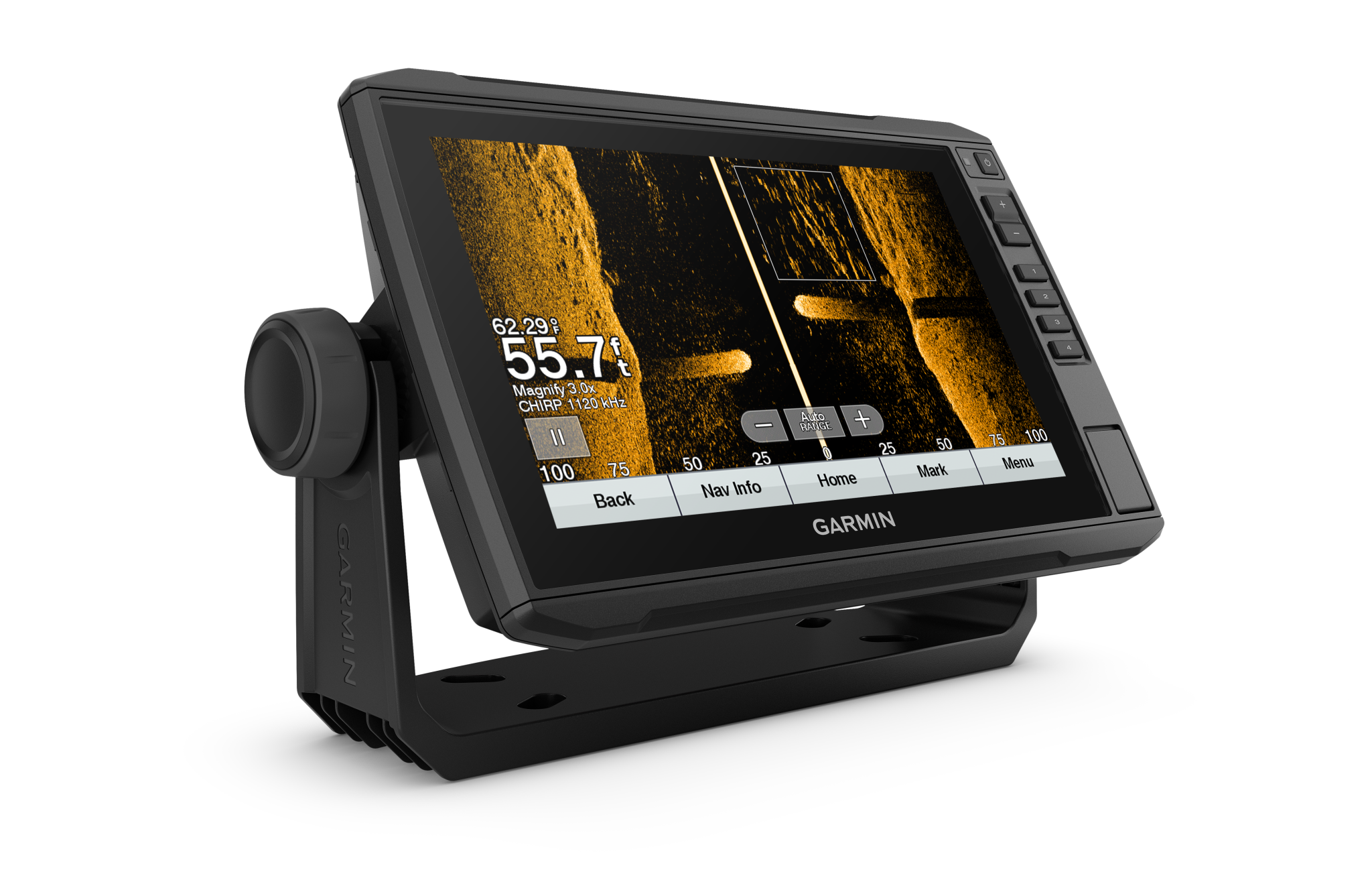

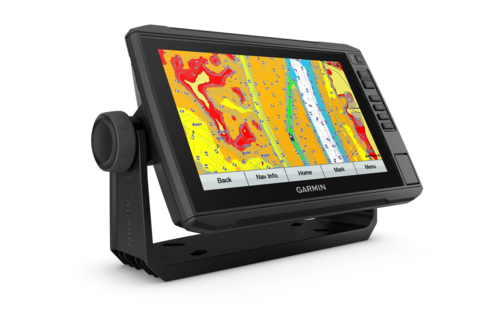

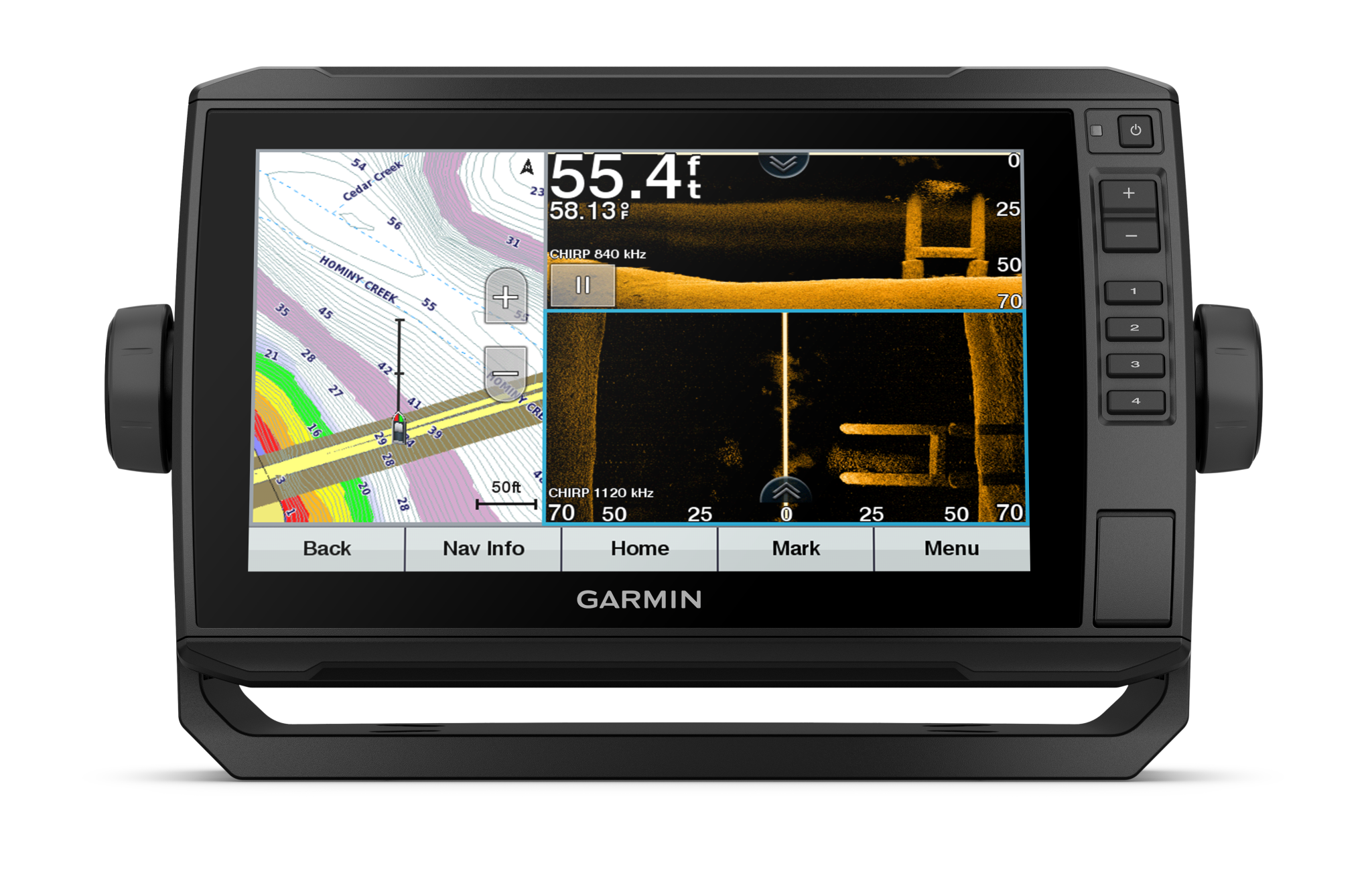

    Echomap UHD 93SV with GT56UHD-TM Transducer

    Brand: Garmin
    Show all Graphs / Fish Finders
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    $ 1,099.99 Excl. tax Out of stock: Unknown Available in store: Check availability

    Available in store

    Close
    +-
    Add to cart
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer
    Echomap UHD 93SV with GT56UHD-TM Transducer

    Product description



    Take fishing to the next level.

    SONAR SUPPORT

    This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

    VIVID COLOR PALETTES

    High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

    OPTIONAL TRANSDUCER BUNDLE

    Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

    PRELOADED MAPPING

    Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours.

    QUICKDRAW CONTOURS

    Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.





    Boat connected.

    NETWORK CAPABLE

    If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7” and 9” models can share information — such as sonar, user data and charts — with them.

    NMEA 2000® AND NMEA 0183 NETWORKS

    Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

    ACTIVECAPTAIN® APP

    Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more1.

    FORCE® TROLLING MOTOR COMPATIBILITY

    Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.

    ENGINE CONNECTIVITY

    Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

    Physical & Performance

    Display Size7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
    Power Input9 to 18 Vdc
    Display resolution800 x 480 pixels
    GPSYes
    Dimension11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm)
    Receiver

    5 Hz

    Waterproof

    IPX7

    Weight

    2.3 lbs (1.0 kg)

    Mounting OptionsBail or flush
    Display TypeWVGA, NP

    Maps & Navigation

    Garmin Navionics Vision+™Yes
    Navigationigation Accepts Data Cards

    1 microSD card; 32 GB maximum size

    Navigation Routes100
    Garmin Navionics+™Yes

    Features

    Waypoints

    5000

    Sailing FeaturesYes
    NMEA0183 CompatibleYes
    Has built-in receiverYes
    USB portsNo
    (Sounder) TOPOYes
    (Sounder) SideVübuilt-in 260/455/800/1000/1200 kHz
    DSCYes
    TouchscreenYes
    LakeVü g3 UltraYes
    NMEA2000 CompatibleYes
    BlueChart Mobile Planning Compatible

    yes

    Typical current draw at 12 Vdc1.0 A
    NMEA 2000 ports1
    (Sounder) Tide tablesYes
    GLONASSNo
    Track points50,000
    Panoptix™ sonarYes
    Connections Garmin Marine Network Ports

    1 Panoptix™ port

    LakeVü g3Yes
    Supports WAASYes
    GSD Black Box Sonar SupportNo
    Maximum current draw at 12 Vdc1.5 A
    Smart Mode CompatibleNo
    Built-in Auto GuidanceNo
    Maximum power usage at 10 Vdc18W
    BlueChart g3Yes
    Standard MappingYes
    LakeVu (inland)Yes
    Displays sonarYes
    ANT+ (Connectivity)No
    GCV Black Box Sonar SupportNo
    BNC external GPS antenna portNo
    Connections NMEA0183 Input Ports

    1

    Spoken audio alertsNo
    BlueChart g3 VisionYes
    Garmin Wi-Fi network (local connection)No
    InputTouchscreen with Keyed Assist
    Garmin Quickdraw ContoursYes
    (Sounder) BLUETOOTH®No
    AISYes
    Raster chart supportNo
    NMEA 0183 input (Tx) ports1
    OneHelm supportNo
    ClearVübuilt-in 260/455/800/1000/1200 kHz
    Tracks50 saved tracks
    Wireless Remote CompatibleYes
    Supports Fusion Lync Compatible RadioYes
    GalileoNo
    LiveScopeYes
    Power output500 W
    12-pin transducer ports1
    BlueChart (coastal)No
    Traditional sonar (dual frequency/beam)built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
    GRID (Garmin Remote Input Device) compatibleNo



    With Transducer
    ECHOMAP UHD 93sv with LakeVü g3 for U.S.
    GT56UHD-TM transducer
    Power/data cable
    Tilt mount with quick release cradle
    Flush mount
    Protective cover
    Hardware
    Documentation

    Show more

    Specifications

    SKU
    010-02523-01
